our products
ESD Products
Antistatic Fabrics
| Property | Specification | Property | Specification |
|---|---|---|---|
| Material | 100% Polyester + Conductive Fabric | Life | Repetitive Washings |
| Conductive Fabric Distance | Strip (5mm,10mm), Grid (2.5mm,5mm,10mm) | Applying Clean Room | ＞ 10–10000 Class |
| Surface Resistance | 1×106 – 1×108 Ohm/sq | Fabric Electric Charge Density | ≤ 3μc/m² |
| Static Decay Time | < 0.17 s | Bearing Pull | 29.4 N |
| Washing | 30°C water or normal dry clean | Standard | GB12014-89 |
ESD Stool
| Property | Specification | Property | Specification |
|---|---|---|---|
| System Resistance | 106 – 1010 Ω | Lift Mode | Gas Lift |
| Adjustable Height | 440 – 600 mm | Chair Surface | Injection Molded |
| Style | Without Back Cushion | Material | Stainless Steel |
| Finish | Steel | Country of Origin | Made in India |
Led Surface Resistance Meter
| Property | Specification | Property | Specification |
|---|---|---|---|
| Digital Measurement Accuracy | 0.1 decade | LED Measurement Accuracy | 0.5 decade |
| Digital Display | Alpha Numeric LCD | LED Display Indication | By different color LEDs |
| Open Circuit Voltage | 100V ± 5% | Battery Status Indicator | By dual color LED |
| Test Actuation | Press to Read | Power Supply | 10.8V Rechargeable Battery |
| Dimensions (in mm) | 210 x 110 x 40 mm | Weight | 500 gms |
Continuous Workstation Monitor
| Property | Specification | Property | Specification |
|---|---|---|---|
| Audible Alarm | For fail modes | Input Power | 12V @ 500 mA DC |
| Accuracy | ±10% | Repeatability | ±10% |
| Dimensions | 125 x 65 x 35 mm | Weight | 125 gms |
| Warranty | One year | Optional | Grounding cords & 12V adapter |
Wrist Strap Tester
| Property | Specification | Property | Specification |
|---|---|---|---|
| Battery Status | By Dual Color LED | Test Actuation | By pressing metal sensor plate |
| Accuracy | +/- 10% | Power Supply | 9 Volt Battery |
| Dimensions | 135 x 70 x 25 mm | Weight | Approx. 135 gms with battery |
| Calibration | Recommended every 12 months | Warranty | 12 Months |
Bench Top Ionizer
| Property | Specification | Property | Specification |
|---|---|---|---|
| Air Flow | 1.8 cu m/min | Noise Level | 45 dBA (at 1 m) |
| Power Supply | 210V – 250V AC / 50Hz | Ionization Voltage | +/- 6KV |
| Unbalance Voltage | < +/- 100V | Construction | Powder coated MS Cabinet |
| Dimensions | 230 x 150 x 110 mm | Weight | Approx. 2.9 Kgs |
Common Grounding Point
| Property | Specification | Property | Specification |
|---|---|---|---|
| Design | Customized | Usages | Industrial |
| Color | Blue | Country of Origin | Made in India |
Component Organizer
| ART NO. | Cabinet Size | Size of drawers | No. of drawers |
|---|---|---|---|
| ACO 25 | 400mm x 250mm x 160mm | 150mm x 75mm x 35mm | 25 Drawers |
Static Warning Label
1) All the ESD need to be identified with necessary esd awareness stickers and posters.
2) Available in various types and sizes.
2) Available in various types and sizes.

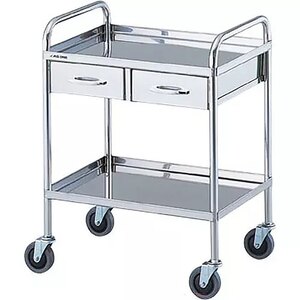

Stainless Steel Cart
We have also designed a wide range of Stainless Steel Cart that are free from corrosion and abrasion. These are manufactured using quality stainless steel that ensures durable performance and robust construction. These are available in various sizes and dimensions that can be customized to suit the diversified requirements of the clients within stipulated time frame.

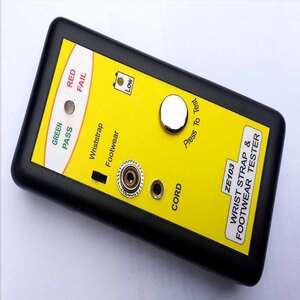

Wrist Strap & Foot Wear Tester
A mandatory instrument needed at the entrance of all esd assembly lines . A simple go / no go test to confirm the esd worthiness of the wrist band / the footwear being used by the operator.
Louvre Panels
| ART NO. | Cabinet Size | Size of Drawers | No. of Drawers |
|---|---|---|---|
| ACO 25 | 400mm x 250mm x 160mm | 150mm x 75mm x 35mm | 25 Drawers |
Digital Static Charge Meter
| Property | Specification | Property | Specification |
|---|---|---|---|
| Resolution | 100 Volts | Indication | 2 ½ Digit LCD Display |
| Test Actuation | Press to read | Power Supply | 9 Volt Battery |
| Battery Status | By Dual color LED | Calibration | Recommended every 12 months |
| Dimensions | 135 x 70 x 25 mm | Weight | 150 Gms |
| Warranty | 12 Months | Accessories | Carry case |
ESD Epoxy Floor
We are also involved in supplying ESD Epoxy Floor that are manufactured using latest technology and quality raw material to offer good impact strength. Fabricated in strict compliance with the prevailing industrial procedures, these are capable of rendering years of efficient services at low cost.
ESD Rack
| Property | Specification | Property | Specification |
|---|---|---|---|
| Specification of PCB Plates | 350mm × (50–250)mm | Contour Size (L×W×H) | 355 × 320 × 570 mm |
| Guide Slot of Side Plate | 2.8mm, 5mm, 10mm | Surface Resistance | Below 10⁶ Ω |
| Weight | 5.6 kg | Fix Method | Screw adjustable |
| Side Plate | Five pieces assembled |
Antistatic Bags
Anti Static Shielding Bag
| Property | Specification | Property | Specification |
|---|---|---|---|
| Usage | Electronic Industries, Auto Parts | Printing | Offset |
| Material | Polythene | Handle | No Handle |
| Top Layer | <109 ohms/sq | Metal Layer | <103 ohms/sq |
| Inter Layer | <109 ohms/sq |
Anti Static Zip Lock Bag
We are among the noted manufacturers and exporters of anti static ziplock bag bs-sbg 1002. This is used to store powders and granular materials in varied amount. Our packing bags are highly demanded by the customers due to the features like excellent moist proof design, high storage capacity and high flexibility. Generally, plastic bags are widely used in vegetable and fruit stalls. Furthermore, automotive and electronic spares are also offered to the customers in pe/ pve bags of varied sizes.
Anti Static Shielding Bags
| Property | Specification | Property | Specification |
|---|---|---|---|
| Usage | Electronic Industries, Auto Parts | Printing | Offset |
| Handle | No Handle | ||
| Top Layer | <109 ohms/sq | Metal Layer | <103 ohms/sq |
| Inter Layer | <109 ohms/sq |
Transparent Static Shielding Bag
| Property | Specification | Property | Specification |
|---|---|---|---|
| Usage | Electronic Industries, Auto Parts | Handle Type | D Cut |
| Printing | Offset | Material | Polythene |
Static Shielding Bags
We are one of the manufacturer of static shielding films & bags in India with our own in-house converting capabilities and the pouches and sheets are manufactured in ROHS compliance and appreciated as the most reliable, readily available, and competitively priced static shield bag in the electronic industry. These provide a static safe environment for sensitive electronic devices and are available in different sizes. These bags are offered with strong 2-seal configuration with bottom folding or 3 sides sealing or zip at the top and we can supply even rolls of the material. ESD logo can be easily printed with our rotogravure and screen printing machines.
Static Shielding Bags
| Property | Specification | Property | Specification |
|---|---|---|---|
| Color | SILVER | Usage | MOISTURE PROTECTION |
| Pattern | Plain | Surface Finish | Glossy |
| Printing | Flexographic | Closure Type | Zipper |
| Material | HDPE |
Scientific Instrument
Airborne Laser Particle Counter
We are one of the prominent organizations involved in the fabrication of Airborne Laser Particle Counter that is used across various industries for airborne particle counting. This innovative device is the result of tireless efforts of our engineers and is designed to deliver accurate performance for a longer time.
Digital Anemometer
We have in store an advance Digital Anemometer that offers rapid and precise measurements of temperature and air velocity. Developed in strict compliance with the set industry standards, this innovative solution offer fast and accurate results with digital readability. Clients can avail this smart and compact device from us at economical prices.
HEPA & PRE Filter
HEPA & PRE Filter
We have in store HEPA Filter that are used in areas where low resistance & high dust holding capacity is essential. These are capable of eradicating the hazardous dust particles including mold spores, dust mites, pet dander and other irritating allergens from the air. Engineered after extensive research, these also require low maintenance.
| Property | Specification | Property | Specification |
|---|---|---|---|
| Type | Box Type | Media | Ultra clean glass fiber paper |
| Casing | Epoxy powder coated | Gasket | Neoprene |
| Retention | 0.3 Micron | Efficiency | 99.97% |
- Pharmaceutical Processing : Aerospace Engineering
- Genetic & Biological Research : Biohazard Atmosphere
- Laminar Flow Workstations : Bio Safe Hoods (Biological Safety Cabinets)
- Hospital Operating Theaters & Intensive Care Units : Clean Rooms for Micro Component Electronic Manufacture & Assembly
- Atomic Research : Pre-filter Stage to ULPA Systems
Positive Pressure Module
Pressure Module
| Property | Specification | Property | Specification |
|---|---|---|---|
| Usage/Application | Industrial | Color | Silver |
| Features | Designed to provide a clean area within a small enclosure or cell | Country of Origin | Made in India |
Garment Storage Cubicle
Garment Storage Cubicle
We have in store Garment Cubicle that is specifically designed keeping in mind the requirements of different research labs. These are fitted with HEPA Air Filters that keep garments clean in storage and when being handled. These cabinets are spacious enough to accommodate dresses, lab coats as well as other accessories like shoes, belts and ties in an organized manner.
| Property | Specification | Property | Specification |
|---|---|---|---|
| Color | Silver | No of Racks | Customize |
| Material | Stainless Steel | Country of Origin | Made in India |
- Reliable rocker switches operate the motor and lights, and a mini helic pressure gauge monitors cabinet operation.
- Built-in fluorescent lighting provides excellent illumination of the work zone.
- The reliable lighting system is zero-flicker and instant start.
- The main body of the cabinet is constructed of industrial-grade electro galvanized steel/stainless steel.
- All cabinet components are clean room compatible.
ESD Floor Tiles
ESD Floor Tiles
- Electro Static Dissipative Floor Tiles
- Suitable for: Electronics Assembly / Lab Rooms / Pharmaceutical Industries / Operation Theaters etc.
- Size: Approx. 600 mm x 600 mm
- Thickness: 2 mm and 3 mm
- Surface Resistivity: 107 to 1011 ohms/sq.
- Surface to Ground Resistance: ≤ 109 ohms
ESD Box
Esd Storage Box
| Property | Specification | Property | Specification |
|---|---|---|---|
| Capacity | 1kg | Material | Plastic |
| Color | Black | Shape | Square |
| Country of Origin | Made in India |
Multi Purpose Conductive Box
| Property | Specification | Property | Specification |
|---|---|---|---|
| Capacity | 10 Kg | Material | Stainless Steel |
| Color | Red | Shape | Rectangular |
| Automation Grade | Semi Automatic | Country of Origin | Made in India |
Conductive PP Corrugated Crates
Conductive PP Corrugated Crates easily stackable and grounded to single point to provide a perfect esd protection to pwbswith esd.
surface resistivity: 10^4 to 10^6 ohms / sq
surface to ground resistance: < or = 10^6 ohms
surface resistivity: 10^4 to 10^6 ohms / sq
surface to ground resistance: < or = 10^6 ohms
Conductive Component Organizer
Ideal for storage of esd. And small pwbs imported conductive plastic moulded boxes are easily stack able both in x & y direction to make a comfortable component organizer to desired size. And grounded to a single point to provide a perfect esd protection to pwbs with esd.
Surface Resistivity:- 10^4 To 10^6 Ohms /Sq
Surface To Ground Resistance :- < Or =10^6 Ohms.
Size: External:138Mm(L)*93Mm(W)*46Mm(H);
Internal : 127Mm(L)*87Mm(W)*42Mm(H).
Surface Resistivity:- 10^4 To 10^6 Ohms /Sq
Surface To Ground Resistance :- < Or =10^6 Ohms.
Size: External:138Mm(L)*93Mm(W)*46Mm(H);
Internal : 127Mm(L)*87Mm(W)*42Mm(H).
ESD Grounding Cord
ESD Grounding Cord
| Property | Specification | Property | Specification |
|---|---|---|---|
| Input Current | 10 Amp | Material | Other Metal |
| Cord Length | 3 m | Type | 2 Pin |
| Usage/Application | Electric Appliance | Country of Origin | Made in India |
ESD Foot Shoes
| Property | Specification | Property | Specification |
|---|---|---|---|
| Upper Material | PVC | Upper Shoe Material | Leather |
| Outsole Material | PU | Protection Level | S1 |
| Certification | CE | Ankle Type | Low Ankle |
| Color | Black | Country of Origin | Made in India |
Grounding Leads
| Property | Specification | Property | Specification |
|---|---|---|---|
| Material | Brass | Finishing | Polished |
| Dimensions | 104-106 | Condition | New |
| Country of Origin | Made in India | Ground Resistance | 104-106Ω |
| Package | 1PC/box |
Storage Box
| Property | Specification | Property | Specification |
|---|---|---|---|
| Usage/Application | Storing and transferring electronic parts or products which are sensitive during production | Color | Black |
| Printing | Digital | Country of Origin | Made in India |
The hollow slab are light, wearable, damp proof, anti corrosive and economical. They reduce damage ratio to electrons in production to cut down cost and increase quality of product and profit.
Application: used for containing, packaging, storing and transferring electronic parts or products which are sensitive during production.
Anti Static Products

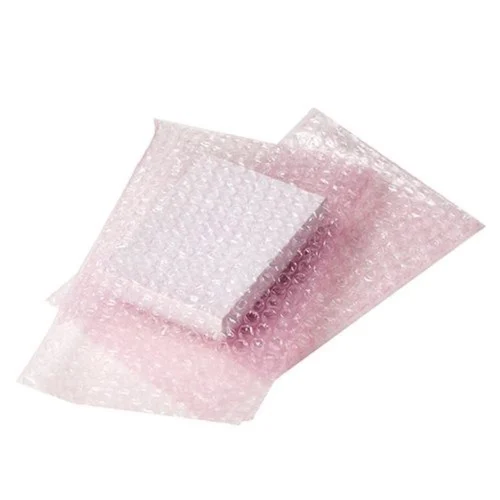

Anti Static Pink Bubble Sheet
Low Density Polyethelene Homogeneously impregnated with antistatic agents protects the printed wire boards and components from the tribo electric charges inside as well against mechanical shocks due to air bubble cushion.
Surface Resistivity: 10^9 to 10 ^12 ohms/sq.
Color:
Surface Resistivity: 10^9 to 10 ^12 ohms/sq.
Color:
Anti Static Brushes
| Property | Specification | Property | Specification |
|---|---|---|---|
| Bristle Material | Nylon | Brush Size | 4 inch |
| Usage/Application | Cleaning | Bristle Length | 4 inch |
| Bristle Stiffness | Medium | Color | Black |
| Country of Origin | Made in India |
Anti Static Garments
| Property | Specification | Property | Specification |
|---|---|---|---|
| Product Type | Pants & Shorts | Gender | Unisex |
| Material | Polyester Cotton | Country of Origin | Made in India |
Antistatic Pink EPE Foam Bags
| Property | Specification | Property | Specification |
|---|---|---|---|
| Material | BOPP | Color | Pink |
| Printing Technique | Screen | Country of Origin | Made in India |
Surface resistivity: 10^9 to 10 ^12 ohms/sq
Anti Static Stainless Steel Shelf
| Property | Specification | Property | Specification |
|---|---|---|---|
| Condition | New | Material | Stainless Steel |
| Hooks Included | Yes | Country of Origin | Made in India |
Anti Static Alarm Adhesive Tape
| ART NO. | Width | Length |
|---|---|---|
| EN 61340-5 | 50 mm | 35 mm |
Anti Static Heel Strap
| Property | Specification | Property | Specification |
|---|---|---|---|
| Volume Resistance | 10⁷–10⁹Ω | Package | 1PC/box |
Antistatic Conductive PU- Foam
| Property | Specification | Property | Specification |
|---|---|---|---|
| Thickness | 5 mm | Color | Black |
| Shape | Rectangle | Country of Origin | Made in India |
Static Charge Meter
| Property | Specification | Property | Specification |
|---|---|---|---|
| Measurement Range | +/- 5kV At 2.5 CMS | Measurement Accuracy | +/- 10% |
| Indication | Analog Dial | Test actuation | Press to read |
| Power supply | 9 Volt Battery | Dimensions | 125 x 65 x 35 mm |
| Weight | 180GMS (With Battery) | Calibration | Recommended every 12 months |
| Warranty | 12 Months | Optional | Instrument Carry case |
